제품 상세 정보:
|
| 보증: | 1 년 | 무게: | 3000kg |
|---|---|---|---|
| 치수 (l*w*h): | 2700*2150*2600 | 상태: | 새로운 |
| 유형: | 수직의 | 애프터 판매 서비스 제공: | 해외 서비스 기계, 온라인 지원 엔지니어 |
| 전압: | 380V 50HZ, 고객 요구 사항 | 전원 (W): | 5.5kW |
| 기계 유형: | 중국 제조업체 머시닝 센터 CNC 수직 공정 센터 | 축: | 대만 10000rpm 축 |

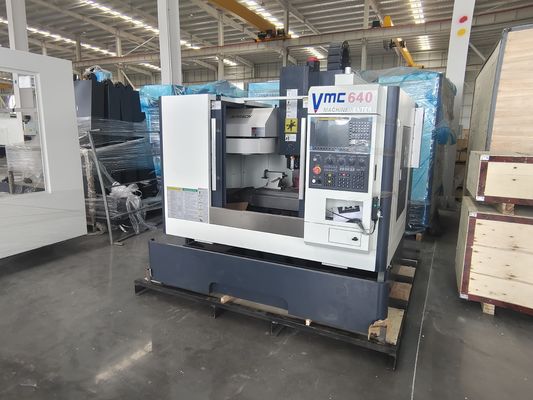

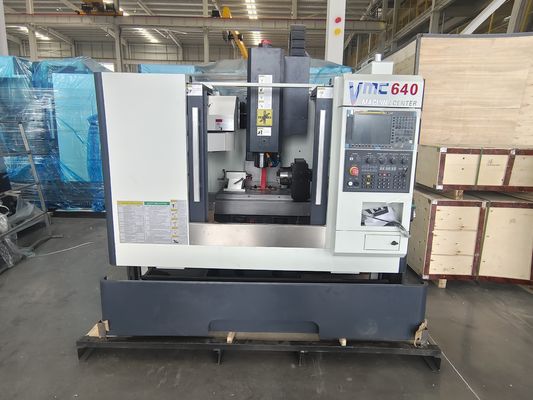

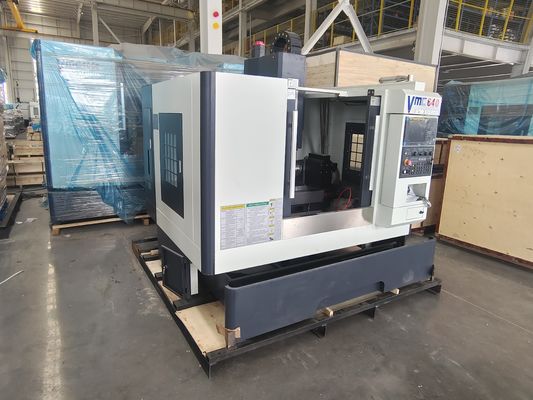

| 스핀들 테이퍼: | BT40 | 제품 이름: | 소형금형가공 CNC 수직형 머시닝센터 VMC640L |
| 도구: | X,Y 선형 가이드 라인 | 색상: | 맞춤 제작 |
| 강조하다: | 10000rpm spindle CNC Vertical Machining Center,16 ATC tool magazine VMC640 CNC Milling Machine,±0.005mm precision Vertical Machining Center |
||
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
| Specifications | VMC640 | ||
| Work table | Area of work table | 800×300mm | |
| Load capacity | 400 kg | ||
| spindle | Motor power | 5.5kw | |
| Distance between the spindle end and the work surface | 120-670 mm | ||
| Spindle center to column guide rail | 460 mm | ||
| Speed | 12000rpm | ||
| Taper of spindle | BT40 | ||
| Distance of travel | X-Axis | 600 mm | |
| Y-Axis | 400mm | ||
| Z-Axis | 450mm | ||
| Feed | X/Y/Z-axis fast moving | 24/24/18mm(linear guide way) | |
| fast cutting speed mm /min | 1-10000 mm/min | ||
| precision | Positional accuracy | ±0.01 mm | |
| Repeat positional accuracy | ±0.005 mm | ||
| Tools | Tool changer type | 16 ATC tool magazine | |
| Max. tool length | 300mm | ||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||
| Max.tool weight | 8kg | ||
| Tool changing time(tool-to-tool) | 7sec | ||
| Data | Air pressure | 0.6 Mpa | |
| Power Supply | Voltage(V)/frequency (Hz) | 220v three-phase voltage | |
| Total capacity(KVA) | 10 | ||
| Weight | 3000 kg | ||
| Diamention | 2280×2150×2250mm | ||
