3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center

3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center

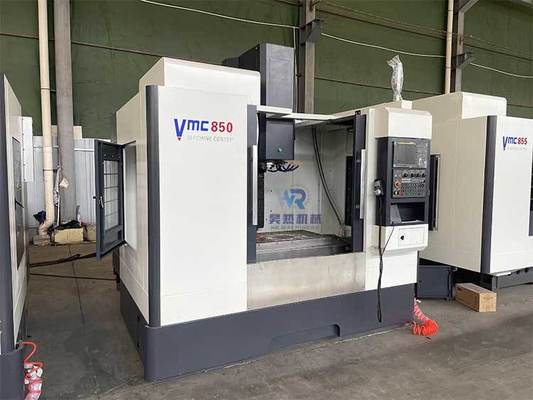

큰 이미지 :  3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HR
인증: CE ISO
모델 번호: vmc850
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 18000-20000usd
포장 세부 사항: 나무 포장
배달 시간: 30 일
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 40대/월
접촉

3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center

설명
모델: vmc850 테이블 사이즈 (밀리미터): 1000*500
최대 허용하중(Kg): 500 X축 스트로크(mm): 800
Y축 이동거리(mm): 500 Z축 이동거리(mm): 500
t-슬롯: 5-18-108 스핀들 테이퍼 구멍: BT40-140
강조하다:

3 axis CNC metal milling machine

,

Fanuc VMC850 vertical machining center

,

CNC milling center with Fanuc control

3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center



Vmc850 cnc machine Center is a semi closed-loop vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. cnc machine Center The main shaft is driven by servo motor through the same step belt. cnc machine Center It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. It is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts. vmc850 cnc machine center It can be equipped with a fourth rotating shaft to meet the processing requirements of special parts. cnc machine Center
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 0
Model
VMC650
VMC840
VMC850
VMC855
Table size (mm)
1000*400
1000*400
1000*500
1000*550
Max. allowable load (Kg)
400
300
500
500
X-axis stroke (mm)
650
800
800
800
Y-axis travel (mm)
400
400
500
550
Z-axis travel (mm)
550
550
500
550
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
spindle center to Z-axis guide surface (mm)
485
445
552
590
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
Model
VMC966
VMC1050
VMC1160
VMC1165
Table size (mm)
1100*550
1200*420
1200*600
1200*600
Max. allowable load (Kg)
600
500
800
800
X-axis stroke (mm)
900
1000
1100
1100
Y-axis travel (mm)
600
500
600
650
Z-axis travel (mm)
600
550
600
650
T-slot
5-18-100
5-18-100
5-18*100
5-18-100
spindle center to Z-axis guide surface (mm)
663
575
650
710
spindle end face to work table (mm)
100-700
100-650
120-720
120-720
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
18/18/18
36/36/24
36/36/36
Machine Weight (Kg)
5600
5500
6500
6800

Model
VMC1265
VMC1270
VMC1370
VMC1580
Vmc1690
Table size (mm)
1200*600
1200*700
1400*700
1700*800
1600*800
Max. allowable load (Kg)
800
800
800
1500
1500
X-axis stroke (mm)
1200
1200
1300
1500
1600
Y-axis travel (mm)
650
700
700
800
900
Z-axis travel (mm)
650
700
750
700
700
T-slot
5-18-100
5-18-130
5-18-130
5-22-135
7-22-110
spindle center to Z-axis guide surface (mm)
710
710
713
855
936
spindle end face to work table (mm)
120-770
120-770
120-870
160-860
150-850
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT50-155
BT50-190
Spindle speed (r/min)
8000
8000
8000
6000
10000
X/Y/Z rapid movement (m/min)
36/36/36
36/36/36
24/24/24
24/24/18
15/15/12
Machine Weight (Kg)
7000
7000
8000
12000
12000
Product Details
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 1
vmc850 cnc machine center Z-direction counterweight is added for balance to ensure smooth and stable movement of headstock;
vmc850 cnc machine center The z-direction drive motor is equipped with power loss braking device;

Application
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 2

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packing & Delivery
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 3
1. Outside package: Standard marine export plywood case. 2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 30 working days after payment.
Certifications
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 5
Shandong HR machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
3 Axis Cnc Metal Milling Machine Fanuc Vmc850 Vertical Machining Center 6

We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you. Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
