제품 상세 정보:
|
| 전압: | 3상 380V 50HZ,110V/220V | 자동 등급: | 오토매틱 |
|---|---|---|---|
| 전원 (W): | 7.5kW | 상태: | 새로운 |
| 맥스. 스윙 지름: | 800mm | CNC 여부: | CNC |
| 유형: | 수평형, 터닝센터 | 애프터 판매 서비스 제공: | 온라인 지원, 비디오 기술 지원 |
| 보증: | 1 년 | 스핀들 보어: | 105/130 |
| 스핀들 속도: | 0-835rpm | 색상: | 자유롭게 선택할 수 있습니다. |
| 기계 유형: | 편평한 침대 선반, 수평 CNC 선반 Mchine | ||
| 강조하다: | CK6180 CNC lathe machine with 4 station turret,CNC lathe machine with optional chip conveyor,CK6180 CNC lathe with warranty |
||

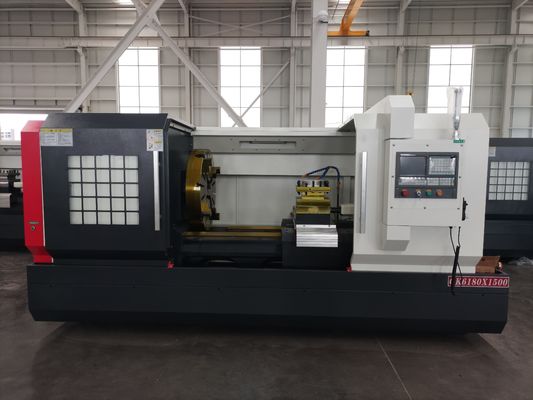

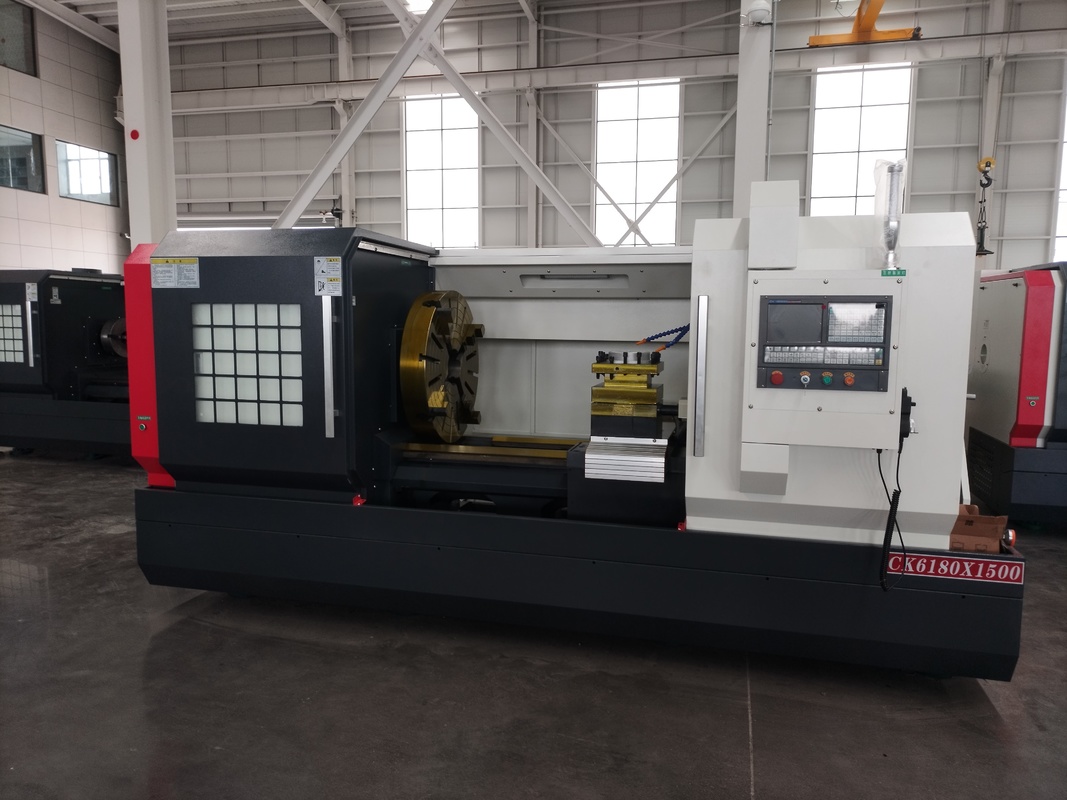

CNC Lathe use
The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.
Parameter List
| Specification: | |
| cnc lathe machine ck6180 | |
| Max. swing dia. over bed | 800mm |
| Max. swing dia. over cross slide | 450mm |
| Max. processing length | 1000mm |
| Dia. of spindle | 130mm |
| Spindle taper | MT6 |
| Spindle number | Manual four-speed |
| Spindle speed | 30-84/53-150/125-350/300-835 |
| Tool holder | 4-station Electric tool turret |
| Tool size | 32/32 |
| Main motor power | 11kw |
| Spindle head type | A2-11 |
| X/Z axis travel | 420/(1000/1500/2000/3000) |
| X/Z axis lead screw diameter × pitch | φ3208/φ5010 |
| X/Z fast moving speed | 4/6 |
| Sleeve diameter/stroke | Φ100/250 |
| Sleeve inner hole taper | MT6 |
| Sleeve drive mode | manual |
| Tailstock body movement mode | manual |
| Dimension | 3400mm×1940 mm×1800mm |
| weight | 4300kg |
