제품 상세 정보:
|
| 보증: | 1 년 | 무게: | 13000kg |
|---|---|---|---|
| 상태: | 새로운 | 유형: | 수직의 |
| 애프터 판매 서비스 제공: | 해외 서비스 기계에 이용할 수있는 엔지니어 | 전압: | 380V 50Hz |
| 전원 (W): | 18.5 kW | 기계 유형: | 중국 제조업체 머시닝 센터 CNC 수직 공정 센터 |
| 축: | 높은 속도와 정밀도 | 스핀들 테이퍼: | B50 |
| 제품 이름: | 정밀 해외 서비스 3 축 CNC 수직 머시닝 센터 가격 | 스핀들 속도: | 6000 rpm |
| 도구: | 선형 가이드웨이 | 색상: | 맞춤 제작 |
| 강조하다: | VMC1580 CNC vertical machining center,CNC milling machine with high precision,industrial CNC machining center with warranty |
||

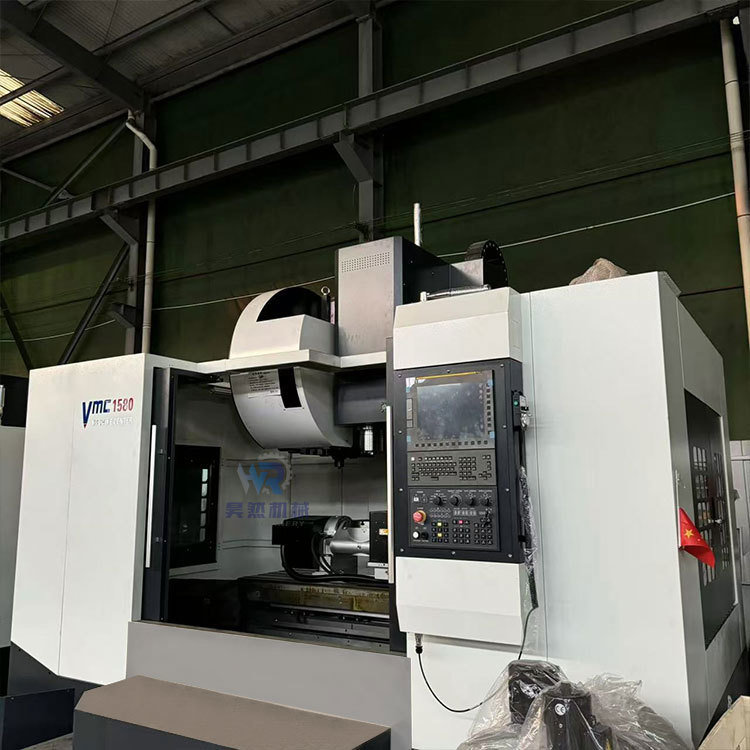

Vmc1580 vertical machining centre Vmc1580 vertical machining centre
Main configuration:
| Specification | unit | ||||
| VMC1580 | |||||
| Table | Size | 1700*800 | mm | ||
| Max. Table Load | 1500 | kg | |||
| T-slot No. and size | 5-22x150 | mm | |||
|
processing Scope |
Table Travel (X) | 1500 | mm | ||
| Table Travel (Y) | 800 | mm | |||
| Table Travel (Z) | 700 | mm | |||
| Spindle end face to Work surface distance | Max. | 840 | mm | ||
| Min. | 170 | mm | |||
| Distance from Spindle center to Z Axes rail surface | 810 | mm | |||
| Spindle | Spindle Taper | SK50 | |||
| Range of Spindle Speed | 6000 | r/min | |||
| Spindle Motor Power | 18.5 | kW | |||
| Move | Fast-moving | X Axes | 24 | m/min | |
| Y Axes | 24 | ||||
| Z Axes | 24 | ||||
| Moving speed | 1-10000 | mm/min | |||

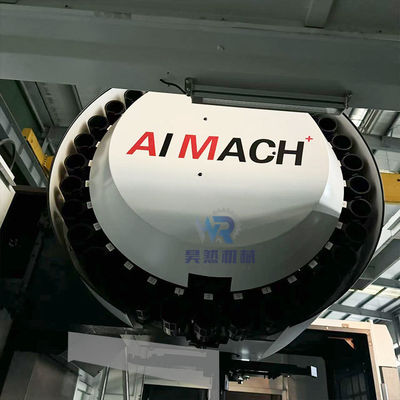

| Tool Magazine | Tool Magazine Capacity | 24 | |||
| Min. Time of Tool Change | 2.5 | s | |||
| Positioning Accuracy | Accuracy testing standard | JISB6336-4:2000/ GB/T18400.4-2010 | |||
| X/Y/Z Axes | 0.008 | mm | |||
| X/Y/Z Axe Repeatability | 0.005 | mm | |||
| Dimension(L*W*H) | 4300*3200*3100 | mm | |||
| Weight | 13000 | kg | |||
| Specification | unit | ||||
Product application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
